Dodge 6JNELEMENT 6JN ELEMENT | D-Flex Coupling Insert

Product Description

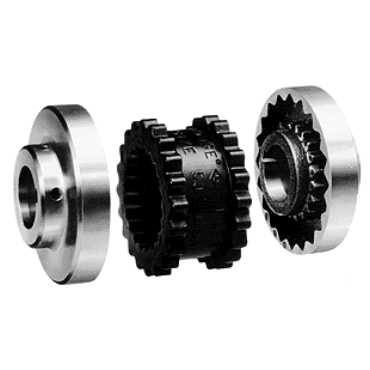

The Dodge 6JNELEMENT is a D-Flex Coupling Insert designed for use in various applications. This coupling insert simplifies the installation process with its interchangeable components. It slides into position for a snug fit without the need for lubrication, promoting clean and quiet performance. The insert eliminates metal-to-metal contact, reducing wear and tear. This product is particularly useful in environments where even load distribution is essential.

• Interchangeable components
• No lubrication required
• Reduced stress buildup

Product Highlights

The Dodge 6JNELEMENT offers a one-piece design made from neoprene, capable of handling up to six thousand RPM. Its rounded edges ensure full tooth engagement and optimal performance when installed.

Product Information

Standard Information

• Brand: Dodge
• Availability: Ready To Ship

Technical Specifications

• Sleeve Type: JN
• Material: Neoprene
• Insert Style: One Piece
• RPM [Max]: 6,000 rpm
• HP @ RPM: 12 hp @ 1800 rpm
• Coupling Size: 6
• Outside Diameter: 3.75 inches
• Temperature Range [Min]: -30 °F
• Temperature Range [Max]: 200 °F
• Torque Rating [Max]: 450 in lb
• Torsional Stiffness: 1718 inch pounds/radian
• Weight: 0.55 lb
• EAN or UPC: 782475875672
