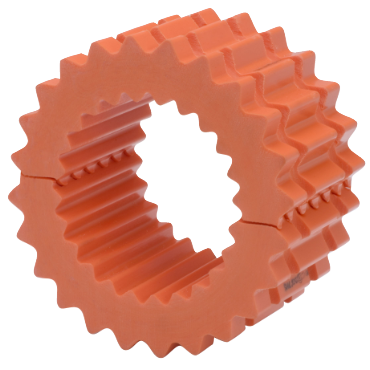

Dodge 6HSELEMENT D-Flex Coupling Insert each

Product Description

Dodge offers the 6HSELEMENT D-Flex Coupling Insert for efficient performance in coupling applications. This insert features a size of six and is designed for easy installation without the need for lubrication. It fits snugly and allows for smooth operation, making it suitable for various industrial uses.

• Interchangeable components for quick installation
• No lubrication required for operation
• Snug fit without metal-to-metal contact

Product Highlights

The D-Flex Coupling Insert provides clean and quiet performance with rounded edges for full tooth engagement, ensuring even load distribution and reduced stress at the edges.

Product Information

Standard Information

• Brand: Dodge
• Part #: 100943235

Technical Specifications

• Material: Hytrel
• Temperature Range [Max]: 250 °F
• Color: Orange
• Insert Style: Two Piece
• HP @ RPM: 12 hp @ 1800 rpm
• Coupling Size: 6
• RPM [Max]: 6,000 rpm
• Torque Rating [Max]: 1,800 in lb
• Temperature Range [Min]: -65 °F
• Sleeve Type: HS
• Outside Dia.: 3.75 in
• Width: 1 7/8 in
• Weight: 0.53 lb
• EAN or UPC: 782475875573
