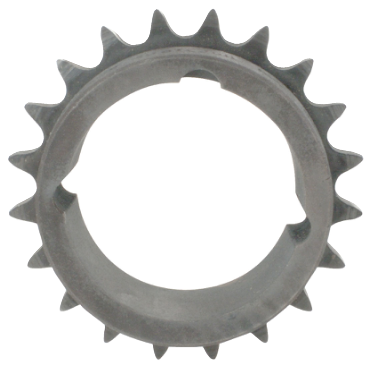

Dodge 60BTL352012 Taper Lock Roller Chain Sprocket

Product Description

The Dodge 60BTL352012 is a taper lock roller chain sprocket designed for precise power transmission in various mechanical systems. This sprocket features a bushing type that allows easy installation and removal. It is suitable for applications requiring efficient torque transfer and durability.

• Taper lock design for secure fit
• Steel construction for strength
• Compatible with roller chains of size 60

Product Highlights

This sprocket is ideal for use in conveyor systems and automated machinery, ensuring smooth operation and reduced wear on components.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 100947172

Technical Specifications

• Bushing Type: Taper Lock
• Hardened Teeth: Without Hardened Teeth
• Inch/Metric: Inch
• No. of Strands Across: 1
• Bushing Series: 2012
• Pitch Diameter: 8.367 inches
• Bushing Bore [Max]: 2 inches
• Bushing Bore [Min]: 0.5 inches
• Width Across Teeth: 0.459 inches
• Hub Diameter: 3.56 inches
• Length Through Bore: 1.25 inches
• Chain Pitch: 0.750 inches
• Sprocket Style: B
• Material: Steel
• Chain Number: 60
• No. of Teeth: 35
• Outside Diameter: 8.783 inches
• Weight: 6.91 LB
• EAN or UPC: 782475049141
