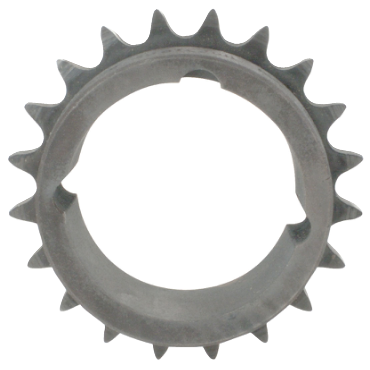

Dodge 60BTL302012 Taper Lock Roller Chain Sprocket

Product Description

The Dodge 60BTL302012 is a Taper Lock Roller Chain Sprocket. This sprocket is designed for efficient power transmission in various mechanical applications.

• Compact design for space efficiency
• Easy installation for quick setup
• Fits shaft securely to maintain alignment

Product Highlights

Ideal for use in machinery requiring precise motion control and durability.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 100947169

Technical Specifications

• Bushing Bore [Max]: 2 inches
• No. of Strands Across: 1
• Sprocket Style: B
• Chain Pitch: 0.750 inches
• Hardened Teeth: Without Hardened Teeth
• Material: Steel
• Outside Diameter: 7.586 inches
• Width Across Teeth: 0.459 inches
• Bushing Series: 2012
• Type: B
• Chain No.: 60
• Bushing Type: Taper Lock
• Hub Diameter: 3.56 inches
• Length Through Bore: 1.25 inches
• Pitch Diameter: 7.175 inches
• Measurement Type: Inch
• No. of Teeth: 30
• Bushing Bore [Min]: 0.5 inches
• Weight: 5.6 LB
• EAN or UPC: 782475049127
