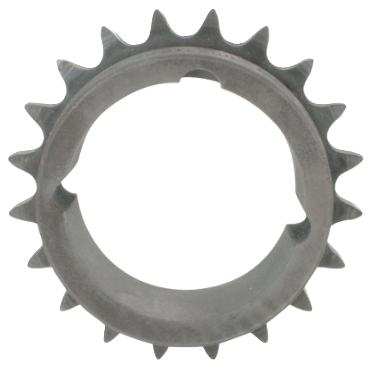

Dodge 60BTL272012 Taper Lock Roller Chain Sprocket

Product Description

The Dodge 60BTL272012 is a Taper Lock Roller Chain Sprocket designed for efficient power transmission. Made of durable steel, this sprocket features a precision design suitable for various industrial applications.

• Chain pitch: 0.750 inches
• Outside diameter: 6.867 inches
• Compatible with standard roller chains

Product Highlights

This sprocket is built to deliver reliable performance in demanding conditions.

Product Information

Standard Information

• Part Number: 100947231
• Brand: Dodge

Technical Specifications

• Material: Steel
• Chain No.: 60
• No. of Teeth: 27
• Hub Diameter: 3.56 inches
• Bushing Type: Taper Lock
• Width Across Teeth: 0.459 inches
• Length Through Bore: 1.25 inches
• Pitch Diameter: 6.46 inches
• Bushing Bore [Max]: 2 inches
• Bushing Bore [Min]: 0.5 inches
• Sprocket Style: B
• Bushing Series: 2012
• No. of Strands Across: 1
• Weight: 4.5 lbs
• EAN or UPC: 782475050086
• Hardened Teeth: Without Hardened Teeth
