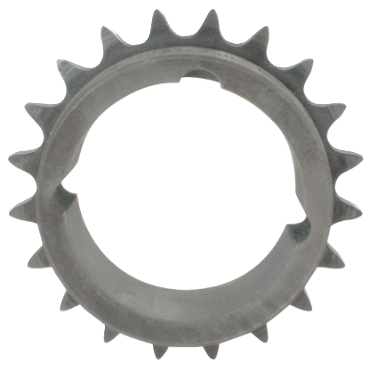

Dodge 60BTL15H1610 Taper Lock Roller Chain Sprocket

Product Description

The Dodge 60BTL15H1610 is a taper lock roller chain sprocket designed for reliable performance. This sprocket is made from steel and features hardened teeth for increased durability.

• Compact design for efficient use
• Easy to install on various shafts
• Allows for exact ratio and rating

Product Highlights

This product ensures a secure fit and supports accurate mechanical performance.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 60BTL15H1610

Technical Specifications

• No. of Strands Across: 1
• Material: Steel
• Outside Diameter: 3.979 inches
• Bushing Bore [Min]: 0.5 inches
• Width Across Teeth: 0.459 inches
• No. of Teeth: 15
• Bushing Series: 1610
• Bushing Type: Taper Lock
• Inch/Metric: Inch
• Hardened Teeth: With Hardened Teeth
• Sprocket Style: B
• Chain No.: 60
• Pitch Diameter: 3.607 inches
• Length Through Bore: 1 inch
• Bushing Bore [Max]: 1.625 inches
• Hub Diameter: 2.94 inches
• Chain Pitch: 0.750 inches
• Weight: 1.06 LB
• EAN or UPC: 782475048991
