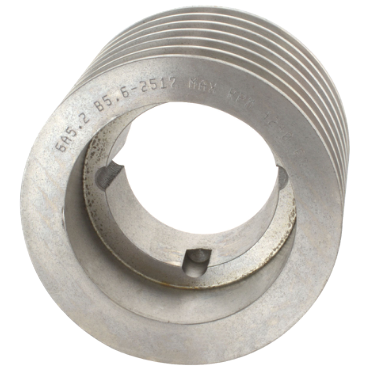

Dodge 6/5V8.53020 Taperlock Sheave for 5V Belts

Product Description

The Dodge 6/5V8.53020 is a Taperlock sheave designed for 5V belts. This sheave operates effectively to isolate shock loads and vibration, accommodating minor misalignment in applications. It requires no lubrication, offering a quiet operational feature. This product is crafted from gray iron for durability.

• 6 grooves for efficient belt engagement
• 8.5 inches outside diameter
• Compatible with Taperlock bushing series 3020

Product Highlights

Suitable for various applications where rugged performance is required. Ideal for industrial and mechanical installations.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 100785498

Technical Specifications

• Outside Diameter: 8.50 inches
• Bushing Type: Taperlock
• Inch/Metric: Inch
• Bore Range (Max): 3.25 inches
• Bore Range (Min): 0.875 inches
• Length Through Bore: 2 inches
• No. of Grooves: 6
• Overall Length: 4.4375 inches
• Weight: 28.65 pounds
• EAN or UPC: 782475085408
