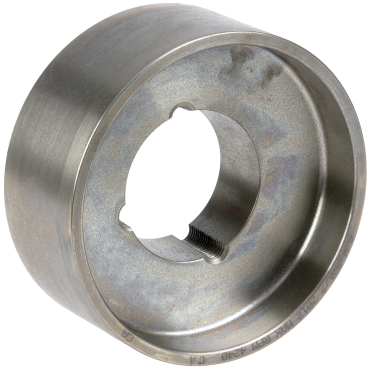

Dodge 5X21/2FF2012 Taperlock Flat Face Pulley

Product Description

The Dodge 5X21/2FF2012 is a Taperlock flat face pulley designed for variable speed applications. It features a five-inch outside diameter and a two and a half-inch width. This pulley requires a 2012 bushing and has a bore range from half an inch to two inches.

• Five inch outside diameter
• Two and a half inch width
• Requires 2012 bushing

Product Highlights

This pulley offers a seamless connection from shelf to shaft without the need for costly reboring, keyseating, or machining. It is made from gray iron casting and is statically balanced for smooth operation.

Product Information

Standard Information

• Brand: Dodge
• MPN: 5X21/2FF2012

Technical Specifications

• Length Through Bore: 1.25 inches
• Pitch Diameter: 5 inches
• Belt Size: 1422V, 1922V, 1930V, 2322V, 2530V, 2926V, 3230HV
• Type: A-1
• Bushing Type: Taperlock
• Bore Range [Min]: 0.5 inches
• Bore Range [Max]: 2 inches
• Bushing Series: 2012
• Material: Cast Iron
• Overall Length: 2.5 inches
• Weight: 5.98 LB
• EAN or UPC: 782475148233
