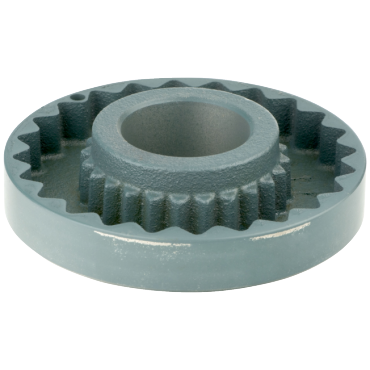

Dodge 5SC35SPCRFLG D-Flex Coupling SC Type Power Each Replacement MPN

Product Description

The Dodge D-Flex Coupling SC Type, with MPN 5SC35SPCRFLG, is designed for quick installation in various mechanical systems. This coupling is known for its interchangeable components, allowing for fast assembly without requiring lubrication. The design ensures a snug fit and eliminates metal-to-metal contact, which improves noise and vibration performance.

• Interchangeable components for easy installation
• Snug fit with no lubrication needed
• AGMA 9 balanced for reduced vibration

Product Highlights

This coupling provides a clean and quiet operation, making it suitable for a range of applications in HVAC, manufacturing, and industrial settings.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 100943186

Technical Specifications

• Hub Length: 1 3/32 inches
• RPM [Max]: 7600 rpm
• Coupling Size: 5SC
• Hub Diameter: 2 inches
• Outside Diameter: 3.25 inches
• For Hub: 5H
• Overall Width: 1 11/16 inches
• Bore Range [Max]: 1.125 inches
• Material: Cast Iron
• Weight: 1.22 LB
• EAN or UPC: 782475875511
