Dodge 5NELEMENT D-Flex Coupling Insert Power each Replacement MPN

Product Description

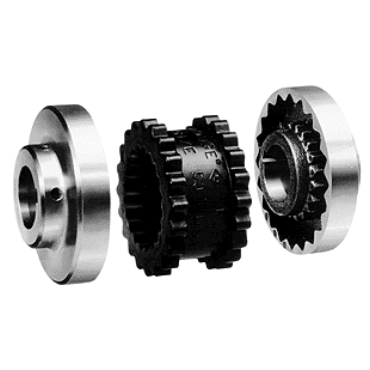

The Dodge 5NELEMENT is a D-Flex Coupling Insert designed for effective coupling needs in various applications. This component features interchangeable parts for quick installation. It slides into position for a secure fit without the need for lubrication or metal-to-metal contact.

• Size 5
• Type N Coupling Sleeve
• Black neoprene material

Product Highlights

The D-Flex Coupling Insert delivers clean and quiet operation. Its rounded edges ensure complete tooth engagement and even load distribution, which reduces stress buildup.

Product Information

Standard Information

• Brand: Dodge
• Part #: 100943220
• Availability: Ready To Ship
• UOM: each

Technical Specifications

• Temperature Range [Max]: 200 °F
• Temperature Range [Min]: -30 °F
• Width: 1 9/16 in
• Outside Dia.: 2.9375 in
• Material: Neoprene
• Coupling Size: 5
• Torque Rating [Max]: 240 in lb
• HP @ RPM: 6.84 hp @ 1800 rpm
• RPM [Max]: 7,600 rpm
• Torsional Stiffness (Inch Pounds/Radian): 916
• Insert Style: Two Piece
• Weight: 0.31 LB
• EAN or UPC: 782475874033
