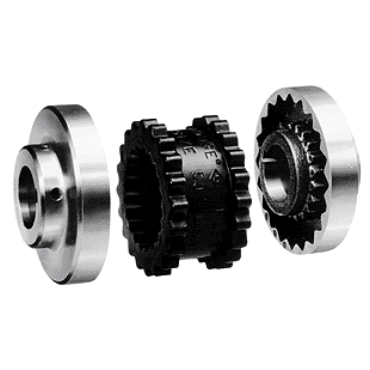

Dodge 5JNELEMENT D-Flex Coupling Insert

Product Description

The Dodge 5JNELEMENT is a D-Flex Coupling Insert designed for flexibility and ease of installation. This coupling insert features interchangeable components, ensuring a snug fit without the need for lubrication. Its design prevents metal-to-metal contact, which helps maintain quiet performance during operation.

• Easy to install due to interchangeable components
• No lubrication needed
• Rounded edges for full tooth engagement

Product Highlights

The Dodge D-Flex Coupling is highly effective in transmitting torque while minimizing stress build-up. The insert style is a single piece for added durability.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 100943057

Technical Specifications

• Color: Black
• Outside Diameter: 2.9375 inches
• Material: Neoprene
• Temperature Range Min: -30 °F
• Temperature Range Max: 200 °F
• HP @ RPM: 6.84 hp @ 1800 rpm
• RPM Max: 7,600 rpm
• Width: 1.5625 inches
• Torque Rating Max: 240 in lb
• Torsional Stiffness: 916 inch pounds/radian
• Coupling Size: 5
• Insert Style: One Piece
• Weight: 0.26 lb
• EAN or UPC: 782475873883
