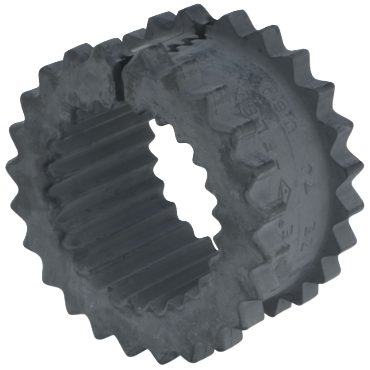

Dodge 5JESELEMENT D-Flex Coupling Insert 5

Product Description

The Dodge 5JESELEMENT is a D-Flex Coupling Insert designed for efficient power transmission. This coupling sleeve features interchangeable components that simplify installation and eliminate the need for lubrication. Its unique design allows it to slide into position snugly, ensuring there is no metal-to-metal contact.

• Interchangeable components for easy installation
• No lubrication needed
• Provides quiet performance

Product Highlights

This coupling insert is constructed from EPDM material which is durable and resistant to various temperatures. With rounded edges, it ensures full tooth engagement and even load distribution, minimizing the stress at the edges.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 100943070

Technical Specifications

• Torque Rating [Max]: 240 in lb
• Outside Diameter: 2.9375 in
• Width: 1 9/16 in
• RPM [Max]: 7,600 rpm
• Temperature Range [Max]: 275 °F
• Temperature Range [Min]: -30 °F
• Coupling Size: 5
• Insert Style: One Piece Split
• Sleeve Type: JES
• Torsional Stiffness (Inch Pounds/Radian): 916
• Material: EPDM
• HP @ RPM: 6.84 hp @ 1800 rpm
• Color: Black
• Weight: 0.23 LB
• EAN or UPC: 782475872855
