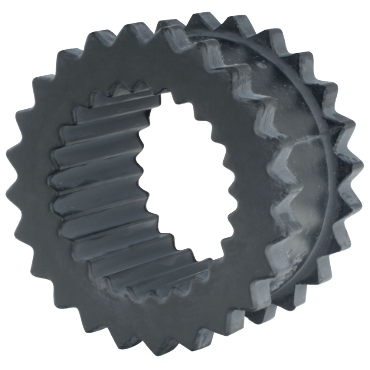

Dodge 5JEELEMENT D-Flex Coupling Insert Power each Replacement MPN

Product Description

The Dodge 5JEELEMENT is a D-Flex Coupling Insert designed for effective power transmission. This coupling insert fits securely and is quick to install, making it ideal for various applications in mechanical systems.

• Interchangeable components for easy installation
• No lubrication needed for operation
• Rounded edges for better engagement

Product Highlights

This insert provides a snug fit without metal-to-metal contact, resulting in reduced noise and stress during operation.

Product Information

Standard Information

• Brand: Dodge
• Part #: 100943056

Technical Specifications

• Material: EPDM
• Outside Diameter: 2.9375 inches
• Insert Style: One Piece
• Torque Rating [Max]: 240 in lb
• Torsional Stiffness: 916 inch pounds/radian
• Coupling Size: 5
• Temperature Range [Min]: -30 °F
• Temperature Range [Max]: 275 °F
• HP @ RPM: 6.84 hp @ 1800 rpm
• RPM [Max]: 7600 rpm
• Width: 1.5625 inches
• Weight: 0.22 lbs
• EAN or UPC: 782475873944
