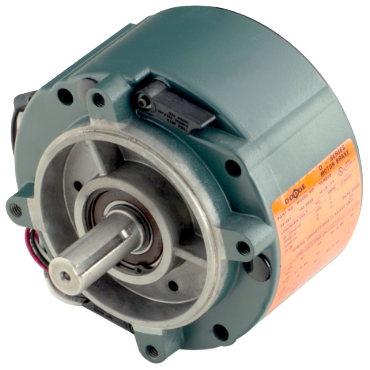

Dodge 56DBSS20MA031345 Electric Motor Brake 20 Ft-Lbs Torque

Product Description

The Dodge Electric Motor Brake with MPN 56DBSS20MA031345 is designed to provide reliable stopping power for various applications. It features a rugged design suited for multiple mounting angles. This motor brake operates efficiently with both AC and DC voltage, making it versatile for different electrical systems.

• Rugged, die-cast aluminum housing
• Compatible with AC or DC voltage
• Splined hub for uniform load distribution

Product Highlights

This motor brake offers efficient operation and ease of installation, making it an ideal choice for trade professionals.

Product Information

Standard Information

• Brand: Dodge
• MPN: 56DBSS20MA031345

Technical Specifications

• Frame: 56
• Model: DBSS
• Style: Motor Brake - Double C-Face
• Weight: 15.31 LB
• Bore Size: 0.625 in
• Enclosure: NEMA 1
• Unit Size: 56
• Output Shaft: 5/8 in
• Torque Rating: 20 ft lb
• Housing Length: 3.97 in
• Outside Diameter: 6.63 in
• Voltage Rating: 115/230
• Power On/Power Off: Power Off
• Shaft Extension Length: 2.12 in
• EAN or UPC: 782475761449
