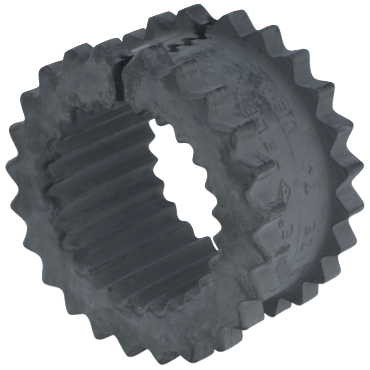

Dodge 4JESELEMENT 4 JES Coupling Insert - D-Flex Coupling Insert

Product Description

The Dodge 4JESELEMENT is a coupling insert designed for effective use in power transmission applications. It features a quick and easy installation process, allowing users to slide the component into place for a secure fit. This insert eliminates the need for lubrication and avoids metal-to-metal contact, ensuring smooth operation and longevity.

• Size 4, type JES coupling sleeve
• 120 inch pounds torque rating
• Minimal maintenance required

Product Highlights

This product enables clean and quiet performance with rounded edges that ensure full tooth engagement. Its design promotes even load distribution and reduces stress at the edges, making it a reliable choice for various applications.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 100943068

Technical Specifications

• Torque Rating [Max]: 120 in lb
• Temperature Range [Max]: 275 °F
• Color: Black
• Insert Style: One Piece Split
• Outside Diameter: 2.3125 in
• RPM [Max]: 7600 rpm
• HP @ RPM: 3.42 hp @ 1800 rpm
• Material: EPDM
• Torsional Stiffness: 458 inch pounds/radian
• Coupling Size: 4
• Width: 1 1/4 in
• Sleeve Type: JES
• Temperature Range [Min]: -30 °F
• Weight: 0.12 lb
• EAN or UPC: 782475874323
