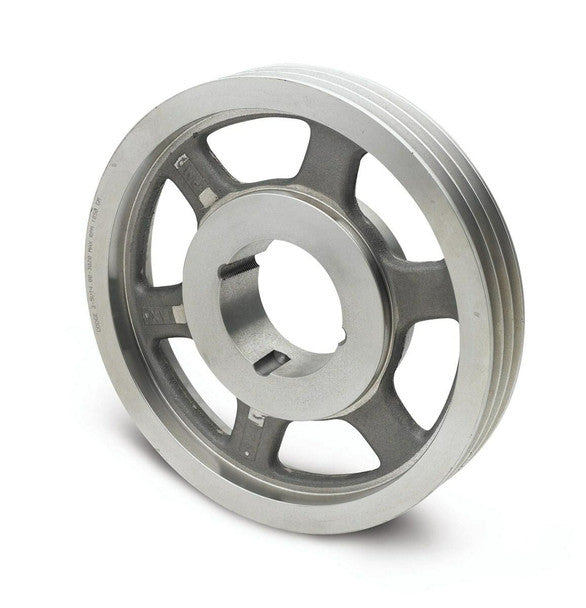

Dodge 4B12.4-2517 SHEAVE - V-Belt Pulley - 12.38 in Pitch Diameter

Product Description

The Dodge 4B12.4-2517 SHEAVE is a robust V-belt pulley designed for effective power transmission. This product is suitable for a variety of applications where reliable performance is essential. Its construction ensures minimal maintenance is required, making it an ideal choice for mechanical systems.

• Manufactured from cast iron for durability
• Compatible with A and B belt sections
• Features four grooves for efficient power transfer

Product Highlights

This V-belt pulley features a taper lock bushing system and is engineered to resist shock loads and vibration. It operates efficiently with a typical efficiency of 95% and ensures long service life.

Product Information

Standard Information

• Brand: Dodge
• Country of Origin: United States

Technical Specifications

• Material: Cast Iron
• Bore Type: Taper Lock Bushed
• Face Width: 3.25 inches
• Keyway Size: Multiple sizes available
• Overall Width: 3.25 inches
• Bushing Series: 2517
• Pitch Diameter: 12.38 inches (A), 12.76 inches (B)
• Outside Diameter: 12.75 inches
• Belt Section Size: A, B
• Number of Grooves: 4
• Bushing Bore Range: 0.5 to 2.6875 inches
• Length Through Bore: 1.75 inches
• Pulley Construction: Spoked
