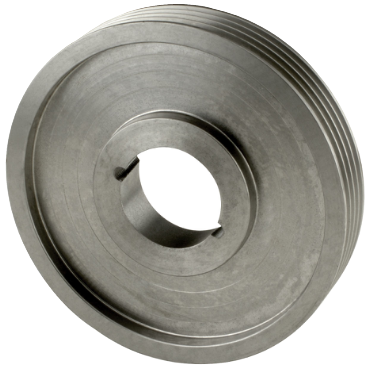

Dodge 4A5.6B6.02517 Taperlock Sheave for A & B Belts

Product Description

The Dodge 4A5.6B6.02517 is a Taperlock sheave designed for A and B belts. This product is suitable for various sheave applications. It is engineered to isolate shock loads and vibration, accommodating minor misalignments. This sheave requires no lubrication, ensuring quiet operation. It features a gray iron casting for durability.

• Four grooves for effective belt traction
• Outside diameter of six point thirty-five inches
• Compatible with A (4L) or B (5L) belt sizes

Product Highlights

This Taperlock sheave supports a bore range from one half inch to two and eleven sixteenths inches.

Product Information

Standard Information

• Brand: Dodge
• MPN: 4A5.6B6.02517

Technical Specifications

• No. of Grooves: 4
• Bore Range [Max]: 2.6875 in
• Bore Range [Min]: 0.5 in
• Outside Diameter: 6.35 in
• Length Through Bore: 1.75 in
• Overall Length: 3.25 in
• Bushing Type: Taperlock
• Bushing Series: 2517
• Belt Size: A, B, 4L, 5L
• Weight: 12.16 lb
• EAN or UPC: 782475095834
