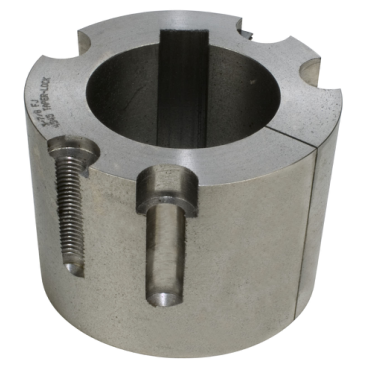

Dodge 4545X37/8KW Taper Lock Bushing

Product Description

The Dodge 4545X37/8KW is a taper lock bushing designed for efficient mounting and secure connections. This product features a bore size of three point eight seven five inches, making it suitable for various applications requiring precision and reliability.

• Easy on, easy off installation
• Compact design for minimal space usage
• Flush mounting without protruding parts

Product Highlights

This taper lock bushing ensures easy maintenance and quick installation, making it ideal for equipment that requires frequent adjustments.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 100792047

Technical Specifications

• Bushing Series: 4545
• Length Through Bore: 4.5 inches
• Torque Capacity: 9166.66 lbf
• Capscrew Size: 3/4 x 2
• Cap Screws: 3
• Bore Size: 3.875 inches
• Bolt Circle Diameter: 6.13 inches
• Large Diameter: 6.38 inches
• Wrench Torque: 2450 lbf
• Material: Sintered Steel
• Keyway Size: 1 x 1/2
• Bore Type: Inch
• Weight: 19.52 lbs
• EAN or UPC: 782475093656
