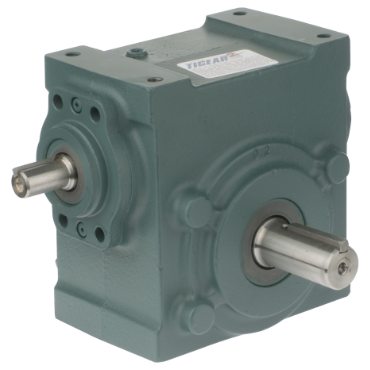

Dodge 40S10L TIGEAR-2 Right Angle Worm Gear Reducer

Product Description

The Dodge 40S10L is a TIGEAR-2 right angle worm gear reducer known for its reliable performance and robust design. It features a left output configuration and is utilized in various applications including conveyor systems and material handling. This gearbox is designed to reduce speed while increasing torque, making it suitable for general-purpose motor applications.

• Left output configuration
• Designed for general purpose applications
• Suitable for high torque requirements

Product Highlights

The Dodge 40S10L offers an efficient solution for speed reduction, ensuring optimal performance in demanding environments.

Product Information

Standard Information

• Component Type: Gearbox
• Housing Material: Cast Iron

Technical Specifications

• HP @ RPM: 10 hp @ 1800 rpm
• Torque Out @ 1750 rpm: 4418 in lb
• Box Length: 10 1/4 in
• Box Width: 8.17 in
• Box Height: 11.52 in
• Input Shaft Size: 1 1/8 in
• Output Shaft Size: 1 7/8 in
• Nominal Ratio: 10
• Weight: 135 LB
