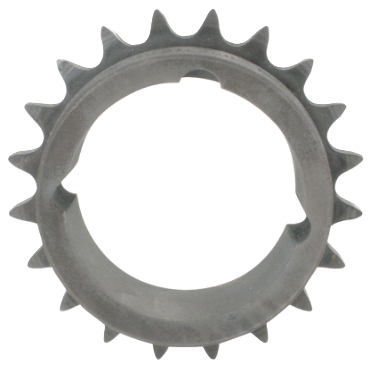

Dodge 40BTL271610 Taper Lock Roller Chain Sprocket 40BTL27 1610

Product Description

The Dodge 40BTL271610 is a Taper Lock Roller Chain Sprocket designed for efficient chain drive applications. This sprocket ensures a reliable connection with the chain while providing the necessary features to meet operational demands.

• Compact design
• Easy installation
• Fits shaft securely

Product Highlights

This sprocket allows for exact ratio and rating required for various machinery applications.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 100947125

Technical Specifications

• Type: B
• Bushing Bore [Min]: 0.5 inches
• Bushing Series: 1610
• Hardened Teeth: Without Hardened Teeth
• Hub Diameter: 3.25 inches
• Length Through Bore: 1 inch
• Chain Number: 40
• Width Across Teeth: 0.284 inches
• Material: Steel
• Number of Teeth: 27
• Measurement Standard: Inch
• Outside Diameter: 4.578 inches
• Number of Strands Across: 1
• Bushing Type: Taper Lock
• Chain Pitch: 0.500 inches
• Sprocket Style: B
• Pitch Diameter: 4.307 inches
• Bushing Bore [Max]: 1.625 inches
• Weight: 1.69 pounds
• EAN or UPC: 782475595594
