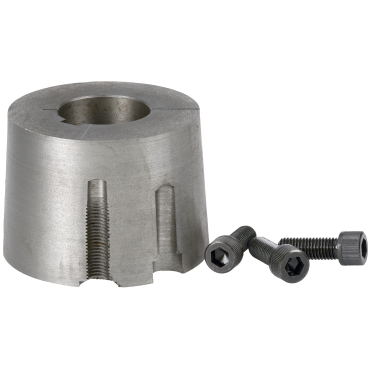

Dodge 4040X315/16KW Taper Lock Bushing

Product Description

The Dodge 4040X315/16KW is a taper lock bushing designed for various applications in mechanical systems. This bushing features an easy on and off mechanism that simplifies installation and removal. Its clean design supports flush mounting, and it does not have protruding parts, making it suitable for compact spaces.

• 3.9375 inch bore size
• Flush mounting design
• Torque capacity of 6441.66 lbf

Product Highlights

This taper lock bushing is ideal for industrial and mechanical applications where secure and reliable connections are needed.

Product Information

Standard Information

• Brand: Dodge
• MPN: 4040X315/16KW

Technical Specifications

• Capscrew Size: 5/8 x 1 3/4
• Torque Capacity: 6441.66 lbf
• Length Through Bore: 4 inches
• Bushing Series: 4040
• Keyway Size: 1 x 1/4
• Wrench Torque: 141.66 lbf
• Large Diameter: 5 3/4 inches
• Bolt Circle Dia.: 5.54 inches
• Bore Type: Inch
• Bore Size: 3.9375 inches
• Material: Sintered Steel
• Cap Screws: 3
• Weight: 12.46 lb
• EAN or UPC: 782475093380
