Dodge 4040X211/16KW Taper Lock Bushing

Product Description

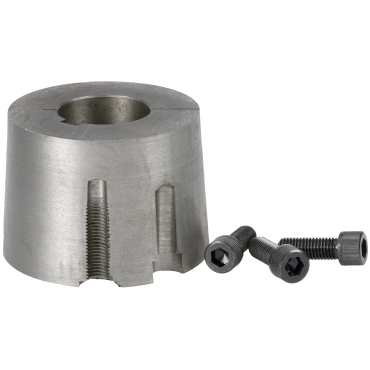

The Dodge 4040X211/16KW is a Taper Lock Bushing designed for easy installation and removal. This product features a bore size of two point six eight seven five inches, making it ideal for various applications. The flush design allows for clean installations without protruding parts.

• Easy on and off for quick installation
• Compact design improves space efficiency
• Flush mounting for a streamlined appearance

Product Highlights

This Taper Lock Bushing is suitable for many industrial applications.

Product Information

Standard Information

• Brand: Dodge
• MPN: 4040X211/16KW

Technical Specifications

• Bushing Series: 4040
• Bore Size: 2.6875 inches
• Bore Type: Inch
• Length Through Bore: 4 inches
• Material: Sintered Steel
• Keyway Size: 5/8 x 5/16
• Torque Capacity: 6441.66 lbf
• Cap Screws: 3
• Weight: 18.33 LB
• Wrench Torque: 141.66 lbf
• Large Diameter: 5.75 inches
• Bolt Circle Diameter: 5.54 inches
• Capscrew Size: 5/8 x 1 3/4
• EAN or UPC: 782475093250
