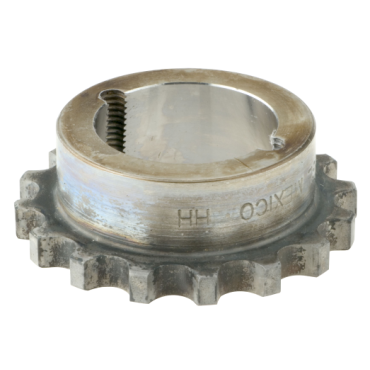

Dodge 4016F Taper Lock Bushed Roller Chain Coupling Hub

Product Description

The Dodge 4016F is a Taper Lock Bushed Roller Chain Coupling Hub designed for efficient performance in various industrial applications. This coupling hub allows for easy shaft attachment and disconnection, featuring hardened tooth sprockets that enhance durability. It meets ANSI standards for double width roller chains, ensuring compatibility and reliability. The compact design is ideal for installations where space is a concern.

• Shaft attachment flexibility
• Hardened tooth sprockets
• Meets ANSI standards for roller chains

Product Highlights

The Taper Lock Bushed Roller Chain Coupling Hub is made of steel and offers a hub diameter of 1.97 inches.

Product Information

Standard Information

• Brand: Dodge
• MPN: 4016F

Technical Specifications

• Input Bore Range: 1/2 to 1 1/8
• Bushing Bore [Min]: 0.5 in
• Outside Dia.: 3.03 in
• Bushing Entry: Tooth Side
• Coupling Spacing: 0.28 in
• Bushing Bore [Max]: 1.125 in
• Chain No.: 40
• Bore Type: Taper-Lock Bushing
• Hub Dia.: 1.97 in
• Material: Steel
• No. of Teeth: 16
• Length Through Bore: 0.88 in
• Bushing Series: 1108
• EAN or UPC: 782475046676
