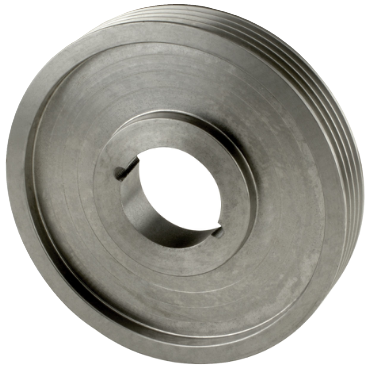

Dodge 4/8V15.04040 Taperlock Sheave for 8V Belts

Product Description

The Dodge Taperlock Sheave for 8V Belts with MPN 4/8V15.04040 is designed for effective power transmission. This sheave accommodates minor misalignment and provides quiet operation. It is built with a gray iron casting to withstand demanding conditions.

• 4 grooves for enhanced performance
• Compatible with 8V belt size
• Suitable for bore ranges from one point four three seven five inches to four inches

Product Highlights

Reliable sheave for power transmission in various applications.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 100944247

Technical Specifications

• Overall Length: 4.87 inches
• Type: A2
• Bore Range [Max]: 4 inches
• Belt Size: 8V
• Belt Match: 1, 4
• Bushing Type: Taperlock
• Bushing Series: 4040
• Bore Range [Min]: 1.4375 inches
• 8V Pitch Dia.: 14.8 inches
• Length Through Bore: 4 inches
• Inch/Metric: Inch
• No. of Grooves: 4
• E (Knuckle Width): 0.5 inches
• M: 0.37 inches
• Outside Dia.: 15.00 inches
• Weight: 111.0 LB
• EAN or UPC: 782475652570
