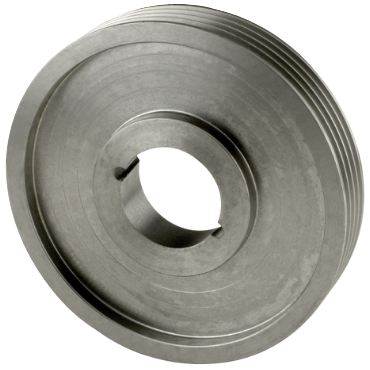

Dodge 4/8V12.54040 Taperlock Sheave for 8V Belts

Product Description

The Dodge 4/8V12.54040 is a taperlock sheave designed specifically for 8V belts. This product is essential for applications needing reliable power transmission and durability. Crafted with a gray iron casting, it provides quality performance in various mechanical systems.

• Four grooves to accommodate 8V belts.
• Outer diameter measures twelve and a half inches.
• Bore range from one and seven sixteenths to four inches.

Product Highlights

This taperlock sheave isolates shock loads and vibrations, allowing for minor misalignment. It operates quietly and requires no lubrication, making it a practical choice for busy environments.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 4/8V12.54040

Technical Specifications

• Overall Length: 4.87 inches
• Outside Diameter: 12.50 inches
• Belt Size: 8V
• Type: A1
• M: 0.87 inches
• Length Through Bore: 4 inches
• No. of Grooves: 4
• Bore Range [Min]: 1.4375 inches
• Bushing Series: 4040
• Inch/Metric: Inch
• Bore Range [Max]: 4 inches
• 8V Pitch Diameter: 12.3 inches
• Belt Match: 1, 4
• Bushing Type: Taperlock
• Weight: 90.0 lbs
• EAN or UPC: 782475081684
