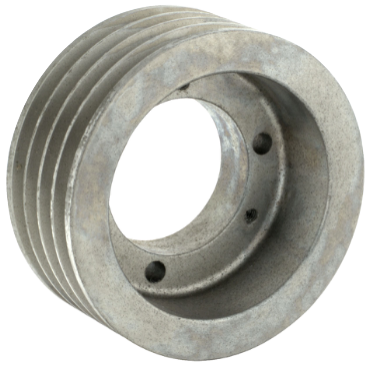

Dodge 4/5V10.9E Q-D Sheave for 5V Belt

Product Description

The Dodge 4/5V10.9E is a Q-D Sheave designed for 5V belts. This product is ideal for applications requiring reliable power transmission.

• Crafted from cast iron for durability
• Compatible with 5V belt sizes
• Features a QD bushing system

Product Highlights

This sheave isolates shock loads and vibrations. Its design allows for minor misalignment, enhancing operational efficiency.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 100944976

Technical Specifications

• Bore Range [Min]: 0.875 in
• Bore Range [Max]: 3.5 in
• Outside Diameter: 10.90 in
• Weight: 37.4 LB
• Material: Cast Iron
• Belt Size: 5V
• No. of Grooves: 4
• Length Through Bore: 2.75 in
• Overall Length: 3.06 in
• Bushing Type: QD
• Bushing Series: E
• Type: B1
• K (in): 0.24 in
• M: 1.44 in
• Belt Match: 1, 4
• EAN or UPC: 782475153916
