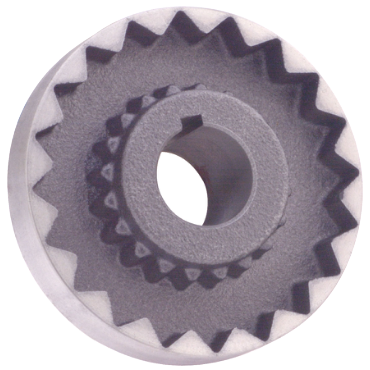

Dodge 3JX3/4FLANGE D-FLEX Coupling

Product Description

The Dodge 3JX3/4FLANGE is a D-FLEX coupling designed for effective performance in various mechanical applications. This coupling features interchangeable parts, allowing for quick and simple installation. It fits snugly into position without requiring lubrication, enhancing operational efficiency and reducing maintenance needs.

• Interchangeable components for fast installation.
• No lubrication necessary for operation.
• Constructed to avoid metal-to-metal contact.

Product Highlights

This coupling provides quiet and clean performance while ensuring reliable torque transmission.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 100943289

Technical Specifications

• Keyway Size: 3/16 x 3/32
• Bushing Series: N/A
• Hub Length: 7/16 in
• Material: Sintered Steel
• Bushing Type: N/A
• RPM [Max]: 9,200 rpm
• Coupling Size: 3J
• Bore Size: 0.750 in - 3/4 in
• Hub Diameter: 1 1/2 in
• Set Screw: Yes
• Lock Type: Setscrew
• Length Through Bore: 0.8125 in
• Outside Diameter: 2.0625 in
• Bore Type: Finished Bore
• Weight: 0.26 LB
• EAN or UPC: 782475875597
