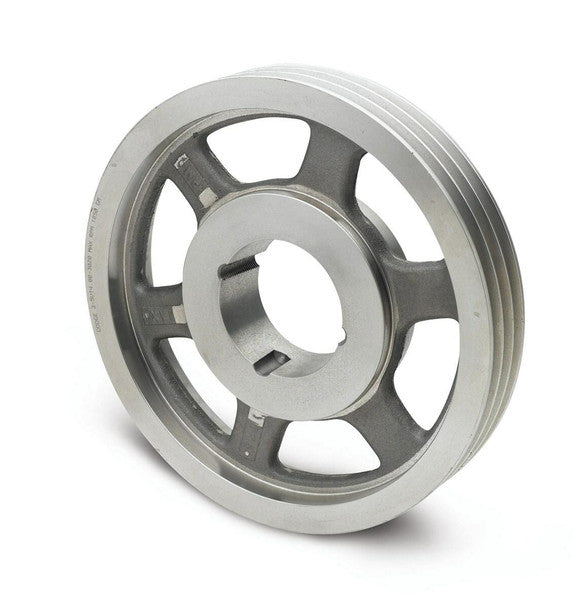

Dodge 3C9.5-2517 SHEAVE - V-Belt Pulley - C Belt Section, 9.9 in Pitch Dia., 2517 Series

Product Description

Dodge 3C9.5-2517 SHEAVE is a V-belt pulley designed for mechanical power transmission. This product is a reliable choice for various industrial applications.

• Made from cast iron for durability
• Taper lock bushed for secure mounting
• 9.9 inch pitch diameter with three grooves

Product Highlights

This SHEAVE features a bushing bore range from half an inch to two and eleven-sixteenths inches, making it versatile for different setups.

Product Information

Standard Information

• Brand: Dodge
• Country of Origin: United States

Technical Specifications

• Material: Cast Iron
• Weight: 33.36 lbs
• Face Width: 3.3750 in
• Overall Width: 3.37 in
• Outside Diameter: 9.9000 in
• Pitch Diameter: 9.9 in
• Bushing Series: 2517
• Number of Grooves: 3
• Length Through Bore: 1.7500 in
• Belt Section Size: C
• Bushing Bore Range: 1/2 to 2-11/16 in
• Keyway Size: Multiple sizes to fit different bore dimensions
