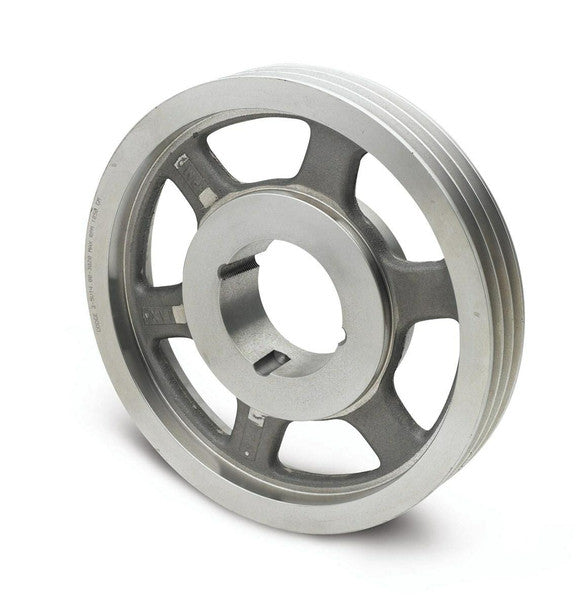

Dodge 3B6.0-2517 SHEAVE - V-Belt Pulley - 3 Groove

Product Description

The Dodge 3B6.0-2517 SHEAVE is a reliable V-belt pulley designed for mechanical power transmission applications. This product is part of the 2517 series and features a taper lock bushing for secure attachment. It is built from durable cast iron for long-lasting performance.

• Isolates shock loads and vibration
• Low maintenance with no lubrication required
• Efficiency of 95% is typical

Product Highlights

This sheave allows for drive ratios of six to one or more and accommodates misalignment, making it suitable for various installations.

Product Information

Standard Information

• Brand: Dodge
• Country of Origin: United States

Technical Specifications

• Weight: 10.25 lbs
• Face Width: 2.5000 inches
• Overall Width: 2.50 inches
• Pitch Diameter: 5.98 (A) inches, 6.36 (B) inches
• Outside Diameter: 6.3500 inches
• Number of Grooves: 3
• Bushing Series: 2517
• Bushing Bore Range: 1/2 to 2-11/16 inches
• Length Through Bore: 1.7500 inches
