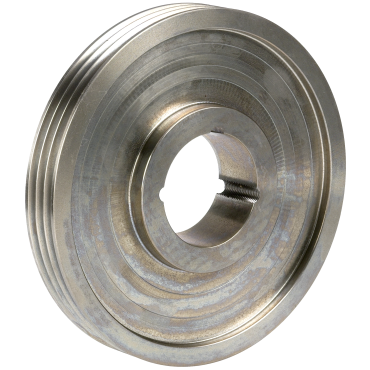

Dodge 3A6.6B7.02517 Taperlock Sheave for A & B Belts

Product Description

The Dodge 3A6.6B7.02517 is a taper lock sheave designed for A and B belts. This product fits various applications where reliable power transmission is essential. The sheave’s design minimizes shock loads and vibration, making it suitable for both industrial and commercial settings. It is designed with three grooves and an outside diameter of 7.35 inches.

• Fits A (4L) or B (5L) belt sizes
• Requires 2517 bushing
• Bore range from one-half to two and five-eighths inches

Product Highlights

This taper lock sheave efficiently transmits power and reduces maintenance needs due to its lubrication-free design.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 100944524

Technical Specifications

• Belt Match: 1, 3
• No. of Grooves: 3
• Bore Range [Min]: 0.5 inches
• Bushing Series: 2517
• Inch/Metric: Inch
• Belt Size: A, B, 4L, 5L
• Outside Diameter: 7.35 inches
• Bushing Type: Taperlock
• M: 0.75 inches
• B (5L) Pitch Diameter: 7 inches
• Length Through Bore: 1.75 inches
• Bore Range [Max]: 2.6875 inches
• Type: A1
• Overall Length: 2.5 inches
• Weight: 14.81 lbs
• EAN or UPC: 782475526796
