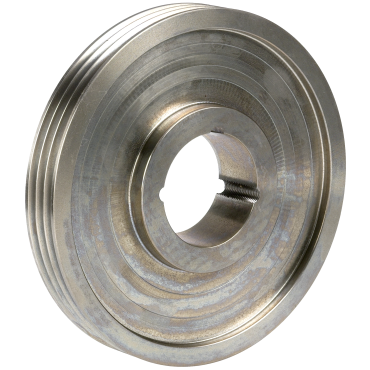

Dodge 3A13.2B13.62517 Taperlock Sheave for A & B Belts

Product Description

The Dodge Taperlock Sheave with MPN 3A13.2B13.62517 is designed for use with A and B belts. This product features a reliable construction that isolates shock loads and reduces vibration during operation. It has a minimal misalignment capability ensuring smooth functionality without excessive wear.

• Compatible with standard A (4L) and B (5L) belt sizes
• Features a bore range from half an inch to 2 and eleven-sixteenths inches
• Quiet operation with no lubrication required

Product Highlights

This sheave is suitable for various applications in mechanical systems where effective power transmission is essential.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 100944526

Technical Specifications

• M: 0.75 in
• Inch/Metric: Inch
• Bore Range [Min]: 0.5 in
• Bore Range [Max]: 2.6875 in
• Bushing Series: 2517
• Bushing Type: Taperlock
• Outside Diameter: 13.95 in
• Type: A3
• Length Through Bore: 1.75 in
• Belt Match: 1, 3
• Belt Size: A, B, 4L, 5L
• No. of Grooves: 3
• B (5L) Pitch Diameter: 13.6 in
• Overall Length: 2.5 in
• Weight: 31.77 LB
• EAN or UPC: 782475526932
