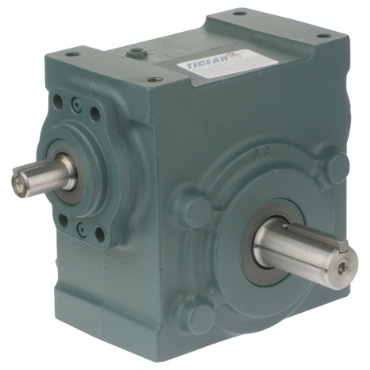

Dodge 35S20L 35S20L | TIGEAR-2 Right Angle Worm Gear Reducer

Product Description

The Dodge 35S20L is a TIGEAR-2 Right Angle Worm Gear Reducer designed for reliable performance in a wide range of industrial applications. This gearbox features a left output configuration and is built with cast iron housing for durability. Ideal for general purpose motor applications, this reducer operates efficiently at five horsepower with a nominal ratio of twenty to one.

• Input HP at RPM: 5.79 hp @ 1750 rpm
• Torque Output: 3620 in lb @ 1750 rpm
• Box Dimensions: 7.05 inches width, 10.57 inches height, and 8.88 inches length

Product Highlights

This worm gear reducer is versatile, ensuring effective torque transmission in various setups while maintaining a compact design.

Product Information

Standard Information

• Brand: Dodge
• Part #: 101915529
• UOM: each
• Availability: In Stock

Technical Specifications

• Input Configuration: Shaft Input
• Output Configuration: Left Output
• Torque Out @ 1750 rpm: 3620 in lb
• Center Distance: 3.5 in
• Seal Type: Single-Lip Contact
• Lubrication: PAG, Standard Temperature
• Weight: 109.0 lb
• Frame Size: Shaft Input, Not a C-Face
