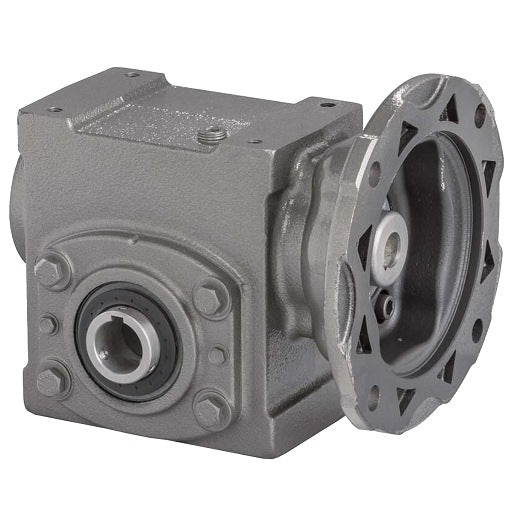

Dodge 35QZ40H18 TIGEAR-2 Right Angle Worm Gear Reducer

Product Description

The Dodge 35QZ40H18 is a TIGEAR-2 right angle worm gear reducer designed for reliable performance in various mechanical applications. This gearbox provides a compact solution for torque transmission with minimal space. The product is constructed with a cast iron housing for durability and long life. The hollow output style allows for easy integration into existing systems.

• 3.5 inches center distance
• 180TC frame size
• 8.74 inches bore length

Product Highlights

This gearbox effectively handles high torque and is ideal for demanding applications.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 112430772

Technical Specifications

• Weight: 109.0 LB
• Seal Type: Two-Piece Harsh Duty
• Center Distance: 3.5 inches
• Bore Length: 8.74 inches
• Horsepower Output: 2.51 hp
• Input Style: Quill
• Component Type: Gearbox
• Overhung Load: 2760 lbf
• Lubrication: PAG, Standard Temperature
• Frame Size: 180TC
• Output Style: Hollow
• Nominal Ratio: 40
• EAN or UPC: 782476068318
