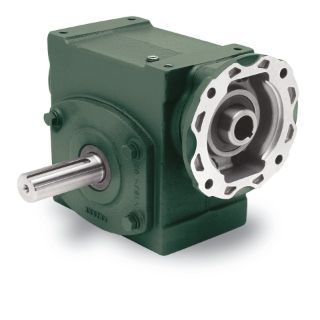

Dodge 35Q40L18 TIGEAR-2 Right Angle Worm Gear Reducer

Product Description

The Dodge 35Q40L18 is a TIGEAR-2 Right Angle Worm Gear Reducer designed for various mechanical applications. This gearbox provides efficient torque transmission and is built with reliable materials for long-term performance.

• 3.5 inches center distance
• 180TC frame size
• Cast iron housing material

Product Highlights

This gear reducer features a left output style and is suitable for high-torque applications.

Product Information

Standard Information

• Brand: Dodge
• Part #: 35Q40L18

Technical Specifications

• Housing Material: Cast Iron
• Output Style: Left
• Input Style: Quill
• Nominal Ratio: 40
• Horsepower Output: 2.51 hp
• Ratio: 40:1
• Lubrication: PAG, Standard Temperature
• Component Type: Gearbox
• Overhung Load: 2760 lbf
• Reduction Type: Single Reduction
• Output Shaft Diameter: 1.5 inches
• Center Distance: 3.5 inches
• Seal Type: Single-Lip Contact
• Frame Size: 180TC
• Weight: 109.0 lbs
• EAN or UPC: 782475765942
