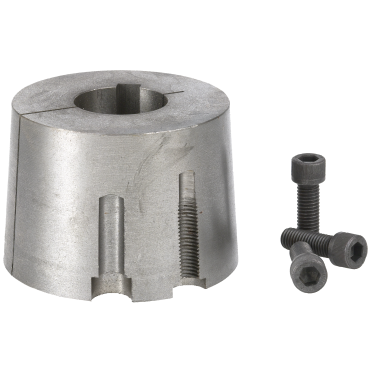

Dodge 3535X3 3/8KW Taper Lock Bushing

Product Description

The Dodge 3535X3 3/8KW is a taper lock bushing designed for smooth operation and reliable performance. Its clean and compact design allows for easy installation and removal. This component is ideal for a variety of industrial applications.

• Easy setup and removal
• Compact and flush mounting design
• Suitable for various industrial machinery

Product Highlights

This taper lock bushing provides secure fitting without protruding parts, making it a preferred choice for manufacturing and engineering professionals.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 100791998

Technical Specifications

• Length Through Bore: 3.5 inches
• Bore Size: 3.375 inches
• Bore Type: Inch
• Large Diameter: 5 inches
• Torque Capacity: 3733.33 lbf
• Bolt Circle Diameter: 4.83 inches
• Cap Screws: 3
• Wrench Torque: 83.33 lbf
• Material: Sintered Steel
• Keyway Size: 7/8 x 1/4
• Capscrew Size: 1/2 x 1.5 inches
• Bushing Series: 3535
• Weight: 8.58 lbs
• EAN or UPC: 782475092987
