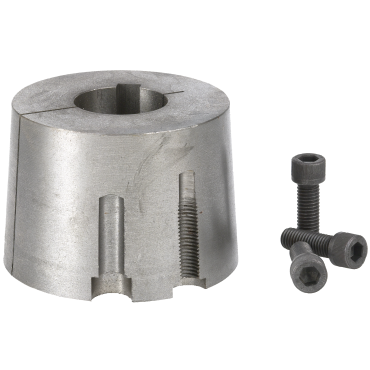

Dodge 3535X3 1/2KW | Taper Lock Bushing

Product Description

The Dodge 3535X3 1/2KW is a taper lock bushing designed for efficient mounting of equipment. It features a bore size of three point five inches and a compact structure that enables flush mounting. This design minimizes the risk of protruding components, ensuring a neat installation.

• Easy to install and remove
• Crafted from sintered steel for durability
• Flush mounting capability

Product Highlights

The taper lock bushing is suitable for various applications, including motor mounts and pulley systems. Its sturdy construction and reliable performance make it a key component in mechanical assemblies.

Product Information

Standard Information

• Brand: Dodge
• MPN: 3535X31/2KW

Technical Specifications

• Large Diameter: 5 inches
• Wrench Torque: 83.33 lbf
• Bushing Series: 3535
• Material: Sintered Steel
• Capscrew Size: 1/2 x 1 1/2 inches
• Bolt Circle Diameter: 4.83 inches
• Cap Screws: 3
• Length Through Bore: 3.5 inches
• Keyway Size: 7/8 x 1/4 inches
• Bore Type: Inch
• Torque Capacity: 3733.33 lbf
• Bore Size: 3.5 inches
• Weight: 8.05 lb
• EAN or UPC: 782475093007
