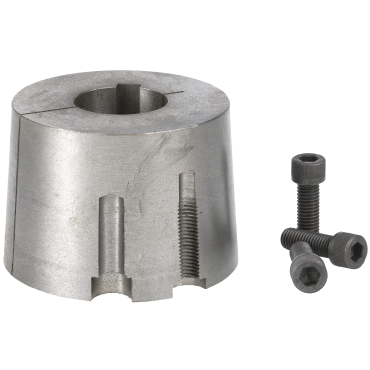

Dodge 3535X2 1/4KW Taper Lock Bushing

Product Description

Dodge 3535X2 1/4KW is a taper lock bushing designed for easy installation and removal. It is ideal for various mechanical applications where reliable connections are necessary.

• Easy on, easy off
• Clean and compact design
• Flush mounting with no protruding parts

Product Highlights

This taper lock bushing features a bore size of two point two five inches and is suitable for high torque applications.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 100791978

Technical Specifications

• Capscrew Size: 1/2 x 1 1/2
• Torque Capacity: 3733.33 lbf
• Bushing Series: 3535
• Bore Size: 2.250 in
• Wrench Torque: 83.33 lbf
• Large Diameter: 5 in
• Length Through Bore: 3 1/2 in
• Keyway Size: 1/2 x 1/4
• Cap Screws: 3
• Bolt Circle Dia.: 4.83 in
• Material: Sintered Steel
• Bore Type: Inch
• Weight: 12.4 LB
• EAN or UPC: 782475092857
