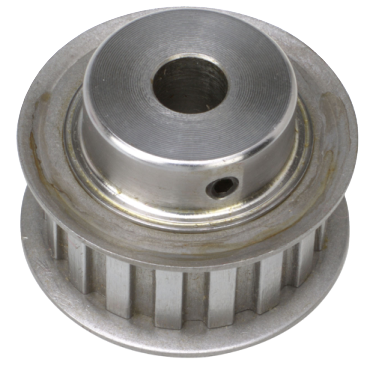

Dodge 30XL037MPB Reborable Timing Pulley

Product Description

The Dodge 30XL037MPB is a Reborable Timing Pulley. It is suitable for use in various applications including agitators, mixers, compressors, conveyors, fans, blowers, and paper machinery.

• 1/5 Pitch with XL Belt Size
• 30 Teeth with a 1.910 Pitch Diameter
• Bore Range from 5/16 inches to 15/16 inches

Product Highlights

This timing pulley operates with a nonslip design and needs no lubrication. It offers minimum backlash for consistent performance.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 100946215

Technical Specifications

• Bore Range [Max]: 0.9375 inches
• Belt Width: 0.375 inches, 0.25 inches
• Hub Projection: 0.35 inches
• Length Through Bore: 0.88 inches
• Type: DF-1
• Hub Diameter: 1.38 inches
• Belt Pitch: 0.2 inches
• Number of Teeth: 30
• Pitch Diameter: 1.91 inches
• Bore Range [Min]: 0.3125 inches
• Belt Size: XL
• Bore Type: Reborable
• Bushing Type: None
• Weight: 0.55 LB
• EAN or UPC: 782475552542
