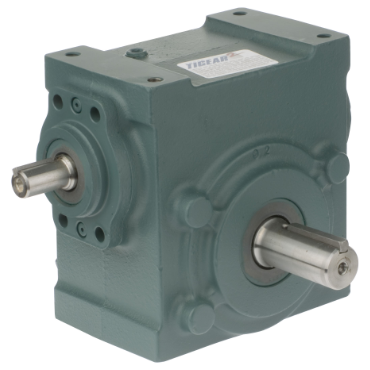

Dodge 30S10H TIGEAR-2 Right Angle Worm Gear Reducer

Product Description

The Dodge 30S10H is a TIGEAR-2 right angle worm gear reducer. This gearbox is designed for general-purpose applications where torque transmission is essential. Its sturdy cast iron housing ensures durability and longevity in demanding environments.

• 3 inch center distance
• Cast iron housing material
• 7.76 inch bore length

Product Highlights

This reducer offers reliable performance and efficient power transmission for various industrial applications.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 101914862

Technical Specifications

• Torque Out @ 1750 rpm: 2347 in lb
• Motor Application: General Purpose
• Seal Type: Single-Lip Contact
• Ratio: 10:1
• HP @ RPM: 5 hp @ 1800 rpm
• Center Distance: 3 inches
• Housing Material: Cast Iron
• Box Length: 8.24 inches
• Output Torque @ RPM: 2347 in lb @ 1750 rpm
• Lubrication: PAG, Standard Temperature
• Component Type: Gearbox
• Input (Shaft or Bore) Size: 7/8 inches
• Output RPM @ 1750 rpm Input: 175 rpm
• Output Style: Hollow
• Overhung Load: 1720 lbf
• Output Configuration: Hollow Output
• Output (Shaft or Bore) Size: 1 15/16 inches
• Box Height: 8.88 inches
• Horsepower Output: 6.52 hp
• Nominal Ratio: 10
• Input Style: Separate
• Input HP @ RPM: 7.11 hp @ 1750 rpm
• Bore Length: 7.76 inches
• Box Width: 6.67 inches
• Weight: 89.0 LB
• EAN or UPC: 782475462209
