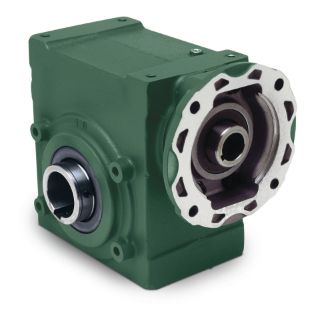

Dodge 30Q60H14 Gear Reducer Power 1.5 Horsepower

Product Description

Dodge 30Q60H14 is a gear reducer designed for flexibility and efficiency in various applications. It offers a nominal ratio of sixty, providing a balance between speed and torque. This device is suitable for use with NEMA motors, specifically compatible with the 140TC frame.

• Rated torque output of two thousand one hundred thirty-eight inch pounds.
• Cast iron housing material for durability.
• Shaft variety includes hollow output and input styles.

Product Highlights

This gearbox is ideal for applications requiring reliable torque transmission. It ensures optimal performance in mechanical systems.

Product Information

Standard Information

• Manufacturer: Dodge
• Part Number: 30Q60H14 DOD

Technical Specifications

• Bore Length: 7.7600 inches
• Output Shaft: Hollow
• Horsepower Rating Input: 1.5000 horsepower
• Horsepower Rating Output: 0.9900 horsepower
• Thermal Horsepower Rating: 2.0100 horsepower
• Mounting Bolt Pattern Width: 4.0000 inches
• Center Distance: 3.0000 inches
• Overhung Load: 2300 pound force
