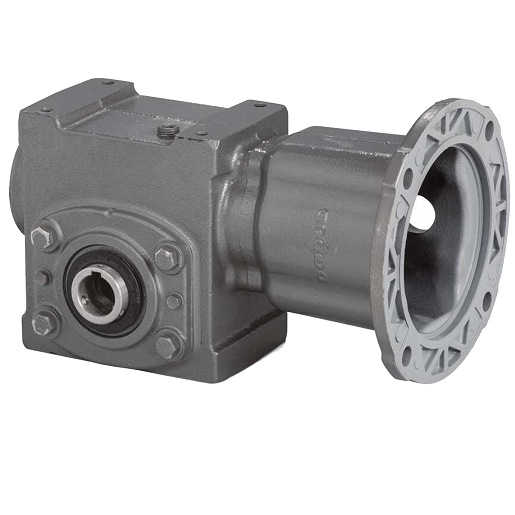

Dodge 30AZ60H14 TIGEAR-2 Right Angle Worm Gear Reducer

Product Description

The Dodge 30AZ60H14 is a TIGEAR-2 Right Angle Worm Gear Reducer designed for various industrial applications. This product offers a robust performance with a maximum horsepower output of 0.99 hp. It is suitable for situations requiring efficient gear reduction and reliability.

• 3 inches center distance
• 140TC frame size
• Hollow output style

Product Highlights

The reducer features a cast iron housing and a bore length of 7.76 inches, making it durable for heavy-duty use.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 30AZ60H14

Technical Specifications

• Horsepower Output: 0.99 hp
• Overhung Load: 2300 lbf
• Component Type: Gearbox
• Nominal Ratio: 60
• Input Style: 3-Piece Coupled
• Lubrication: PAG, Standard Temperature
• Housing Material: Cast Iron
• Frame Size: 140TC
• Center Distance: 3 inches
• Seal Type: Two-Piece Harsh Duty
• Output Style: Hollow
• Bore Length: 7.76 inches
• Weight: 95.0 lb
• EAN or UPC: 782476065089
