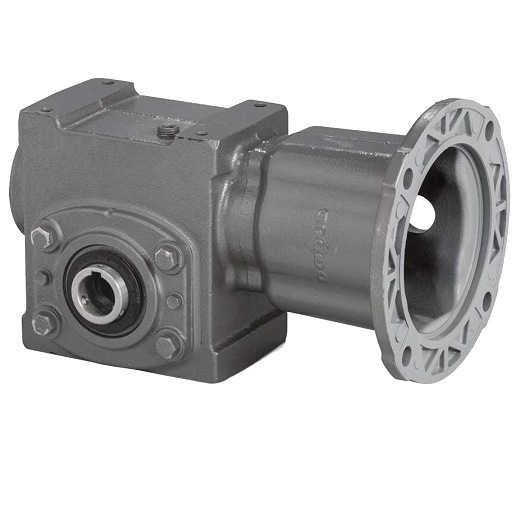

Dodge 30AZ10H14 TIGEAR-2 Right Angle Worm Gear Reducer

Product Description

The Dodge 30AZ10H14 is a TIGEAR-2 Right Angle Worm Gear Reducer designed for efficient power transmission. This gearbox features a nominal ratio of 10 and is an essential component for various industrial applications. It has a hollow output style which aids in flexibility during installation.

• 3 inches center distance
• 140TC frame size
• Cast iron housing material

Product Highlights

The gear reducer efficiently converts input power into output torque while maintaining durability and performance.

Product Information

Standard Information

• Brand: Dodge
• MPN: 30AZ10H14

Technical Specifications

• Nominal Ratio: 10
• Bore Length: 7.76 inches
• Center Distance: 3 inches
• Housing Material: Cast Iron
• Seal Type: Two-Piece Harsh Duty
• Output Style: Hollow
• Horsepower Output: 6.52 hp
• Lubrication: PAG, Standard Temperature
• Frame Size: 140TC
• Overhung Load: 1720 lbf
• Input Style: 3-Piece Coupled
• Component Type: Gearbox
• Weight: 95.0 LB
• EAN or UPC: 782476064808
