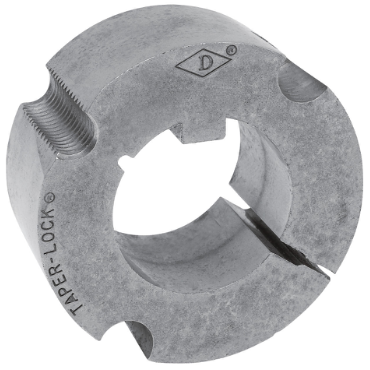

Dodge 3030X1 5/8KW Taper Lock Bushing

Product Description

The Dodge 3030X1 5/8KW Taper Lock Bushing is designed to provide secure and efficient connection in various applications. This bushing features a bore size of one point six two five inches and is built from sintered steel for durability.

• Easy to install and remove
• Compact design with flush mounting
• Torque capacity of two thousand lbf

Product Highlights

The bushing allows for efficient torque transfer and secure mounting, making it suitable for use in motors and gear drives.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 100791946

Technical Specifications

• Bushing Series: 3030
• Bore Size: 1.625 inches
• Bore Type: Inch
• Torque Capacity: 2000 lbf
• Length Through Bore: 3 inches
• Material: Sintered Steel
• Weight: 9.65 lb
• Keyway Size: 3/8 x 3/16
• Cap Screws: 2
• Capscrew Size: 5/8 x 1 1/4
• Wrench Torque: 66.6 lbf
• Large Diameter: 4 1/4 inches
• Bolt Circle Diameter: 4 inches
• EAN or UPC: 782475092062
• NSN Number: 5365-01-500-5169
