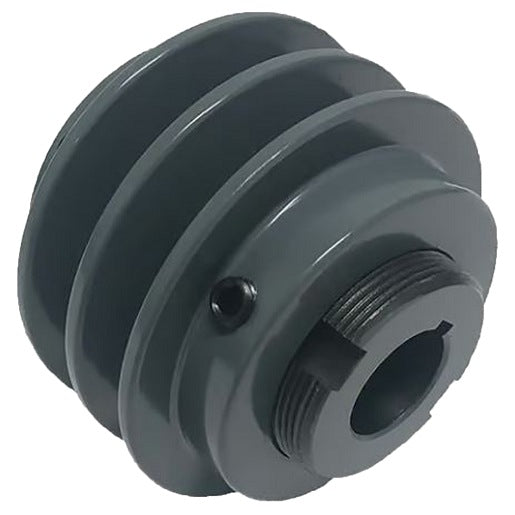

Dodge 2VP56X3/4 | 2VP Cast Iron Variable Pitch Sheave

Product Description

The Dodge 2VP56X3/4 is a cast iron variable pitch sheave designed for various applications. This product features two grooves and has an outside diameter of five point thirty-five inches with a three-quarter inch bore. It can accommodate belt sizes including three L, A (four L), B (five L), or five V.

• Durable cast iron construction
• Statically balanced for smooth operation
• Approximate adjustment range of one point three to one

Product Highlights

This sheave allows for positive locking of adjustment settings, making it suitable for use in conveyors, pumps, fans, and mixers.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 100947075

Technical Specifications

• Finished Bore: 3/4 inches
• Bushing Type: None
• Side Moveable: Two
• Overall Length: 3 inches
• Belt Size: A, B, 3L, 4L, 5L, 5V
• Face Width [Max]: 2.130 inches
• Face Width [Min]: 1.380 inches
• No. of Grooves: 2
• Outside Diameter: 5.35 inches
• Weight: 7.8 LB
• Keyway Size: 3/16 x 3/32
• EAN or UPC: 775829146108
