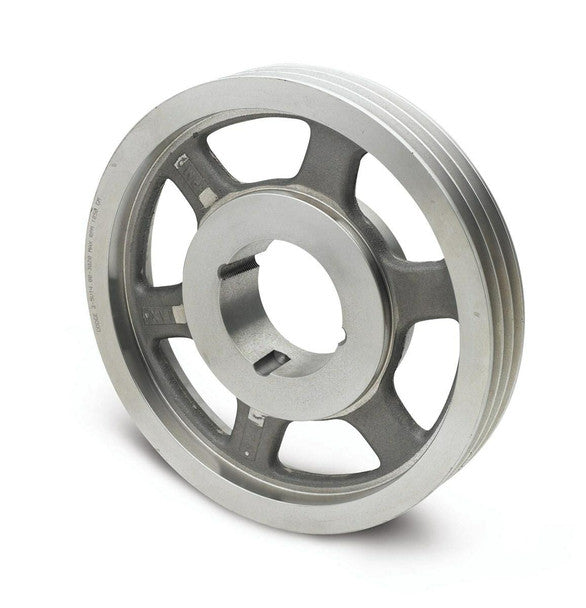

Dodge 2B6.8-1610 SHEAVE - 118228 Bushing Bore V-Belt Pulley

Product Description

The Dodge 2B6.8-1610 SHEAVE is a bushing bore V-belt pulley designed for efficient power transmission. This product features a two-groove design and accommodates both A and B belt sections. The pitch diameters are six point seventy-eight inches for section A and seven point sixteen inches for section B, with an outside diameter of seven point fifteen inches.

• Shock load isolation and vibration absorption
• Misalignment capability
• Drive ratios up to six to one

Product Highlights

This sheave is constructed from cast iron and requires a taper lock bushing for installation. It operates at high efficiency, typically around ninety-five percent, and requires no lubrication, making it low maintenance. Its design ensures quieter operation compared to motors at higher decibel levels.

Product Information

Standard Information

• Brand: Dodge
• Country Of Origin: United States

Technical Specifications

• Weight: 11.9 lbs
• Face Width: 1.75 in
• Overall Width: 1-3/4 in
• Bushing Series: 1610
• Pitch Diameter: 6.78 (A) in, 7.16 (B) in
• Outside Diameter: 7.15 in
• Number Of Grooves: 2
• Bushing Bore Range: 1/2 to 1-11/16 in
• Length Through Bore: 1.00 in
