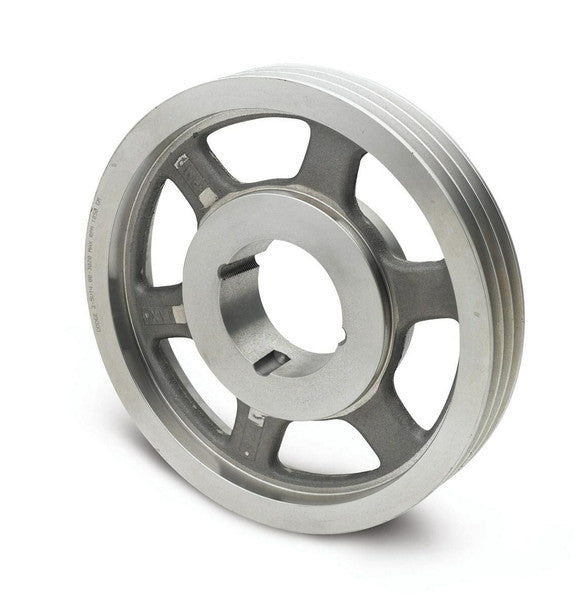

Dodge 2B15.4-2517 SHEAVE - A, B Belt Section - 15.38 (A) in - 15.76 (B) in Pitch Dia.

Product Description

The Dodge 2B15.4-2517 SHEAVE is a V-belt pulley designed for efficient power transmission. It features a Taper Lock Bushing for easy installation and maintenance. This pulley is made from cast iron, ensuring durability in demanding applications.

• Isolates shock loads and vibrations
• Suitable for various drive ratios
• Requires no lubrication

Product Highlights

Perfect for HVAC and industrial applications requiring reliability and low maintenance.

Product Information

Standard Information

• Brand: Dodge
• Country Of Origin: United States

Technical Specifications

• Weight: 26.19 lbs
• Material: Cast Iron
• Bore Type: Taper Lock Bushed
• Face Width: 1.7500 in
• Keyway Size: Multiple sizes available
• Overall Width: 1-3/4 in
• Bushing Series: 2517
• Pitch Diameter: 15.38 (A) in, 15.76 (B) in
• Outside Diameter: 15.7500 in
• Belt Section Size: B, A
• Number Of Grooves: 2
• Bushing Bore Range: 1/2 to 2-11/16 in
• Length Through Bore: 1.7500 in
• Pulley Construction: Spoked
