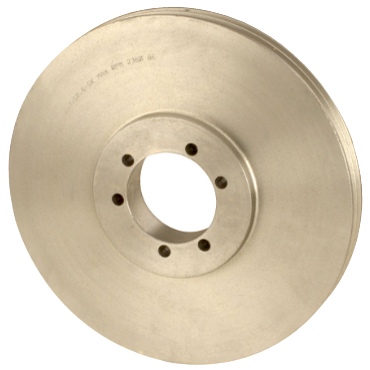

Dodge 2B136-SKSHEAVE 455601 Bushing Bore V-Belt Pulley Power 2 Groove

Product Description

The Dodge 2B136-SKSHEAVE is a reliable bushing bore V-belt pulley, designed for use with A and B belt sections. This pulley features two grooves and has a pitch diameter of thirteen point five eight inches for section A and thirteen point nine six inches for section B. The overall outer diameter measures thirteen point nine five inches. It is constructed from durable cast iron which ensures longevity in demanding applications.

• Isolates shock loads and reduces vibration.
• Maintains alignment for improved performance.
• High efficiency with typical performance around ninety-five percent.

Product Highlights

This pulley requires a QD-type bushing, which enhances flexibility during installation and maintenance.

Product Information

Standard Information

• Brand: Dodge
• Country Of Origin: Canada

Technical Specifications

• Weight: twenty-seven point fifteen pounds
• Face Width: one point seven five inches
• Overall Width: one and three fourths inches
• Bushing Series: SK
• Pitch Diameter: thirteen point five eight (A) inches, thirteen point nine six (B) inches
• Outside Diameter: thirteen point nine five inches
• Number Of Grooves: 2
• Bushing Bore Range: seven sixteenth to two and five eighths inches
• Length Through Bore: one point eight seven five inches
