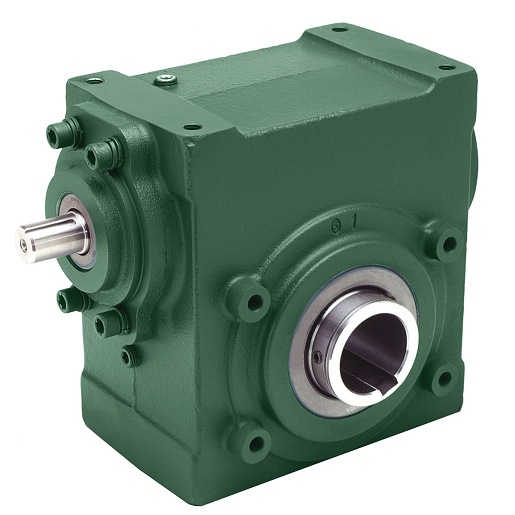

Dodge 26S20HA TIGEAR-2 Right Angle Worm Gear Reducer

Product Description

The Dodge 26S20HA is a TIGEAR-2 Right Angle Worm Gear Reducer designed for reliable performance in various applications. This gearbox features a robust cast iron housing that provides durability and support. It is suitable for environments where space is limited due to its compact design and efficient operation.

• Center Distance: 2.63 inches
• Horsepower Output: 2.32 hp
• Bore Length: 6.62 inches

Product Highlights

The Dodge 26S20HA gearbox supports hollow output style and comes with a single-lip contact seal for effective lubrication and operation under standard temperatures.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 101686874

Technical Specifications

• Horsepower Output: 2.32 hp
• Bore Length: 6.62 inches
• Housing Material: Cast Iron
• Overhung Load: 1610 lbf
• Center Distance: 2.63 inches
• Output Style: Hollow Alternate
• Lubrication: PAG, Standard Temperature
• Nominal Ratio: 20
• Input Style: Separate
• Seal Type: Single-Lip Contact
• Component Type: Gearbox
• Weight: 50.0 lb
• EAN or UPC: 782475947522
