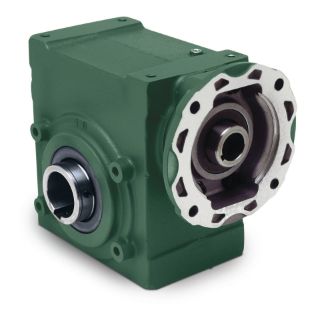

Dodge 26Q15H14 Tigear-2 Reducer 3.6200 Horsepower 26 Case Size

Product Description

The Dodge 26Q15H14 Tigear-2 reducer is a reliable gear reducer designed for efficient performance in various applications. This model features a nominal ratio of 15.0000, making it suitable for tasks requiring precise speed reductions. The gearbox is crafted from durable cast iron for longevity and resilience.

• Nominal ratio of 15.0000
• Rated torque output of 1708 inch-pound
• Compatible with NEMA motors of the 140TC frame

Product Highlights

This reducer is ideal for industrial applications where reliability and efficiency are critical.

Product Information

Standard Information

• Manufacturer: Dodge
• Part Number: 26Q15H14 DOD

Technical Specifications

• Case Size: 26
• Bore Diameter (Output): 1.4380 inches
• Bore Length: 6.6200 inches
• Input Style: Quill
• Lubrication: PAG, Standard Temperature
• Output Shaft: Hollow
• Horsepower Rating Input: 3.6200 horsepower
• Horsepower Rating Output: 3.1600 horsepower
• Rated Torque Output: 1708 inch-pound
• Mounting Bolt Pattern Width: 3.3800 inches
• Mounting Bolt Pattern Length: 6.3800 inches
• Overhung Load: 1610 pound-force
• Output Shaft Center to Input Motor Mounting Face Distance: 5.4900 inches
