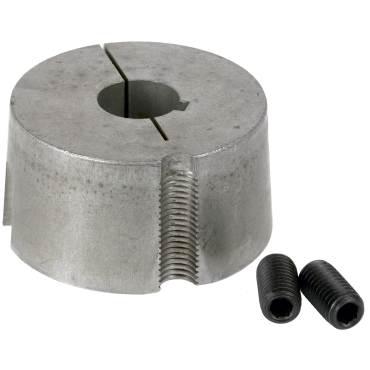

Dodge 2517X48MM14X3.8MM Taper Lock Bushing 48 mm Bore

Product Description

The Dodge Taper Lock Bushing, model 2517X48MM14X3.8MM, is designed for efficient and secure mounting. This bushing is suitable for various applications where reliable connection and performance are required. The 48 millimeter bore size makes it ideal for standard installation in many industrial settings.

• Easy installation and removal
• Compact design for space-saving
• Flush mounting with no protruding parts

Product Highlights

This product simplifies the assembly and disassembly processes in machinery, making it an excellent choice for maintenance tasks.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 100944688

Technical Specifications

• Wrench Torque: 430 lbf
• Keyway Size: 14 mm x 3.8 mm
• Large Diameter: 3.38 in
• Bore Size: 48 mm
• Bolt Circle Diameter: 3 1/4 in
• Cap Screws: 2
• Capscrew Size: 1/2 x 1
• Bushing Series: 2517
• Material: Sintered Steel
• Length Through Bore: 1 3/4 in
• Torque Capacity: 966.66 lbf
• Bore Type: Metric
• Weight: 2.32 LB
• EAN or UPC: 782475530595
